M19 Low Current 5A Outdoor Lighting Connectors Push Locking 14 Pin Waterproof Connector

Product Categories
Shenzhen Ulinkcon Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

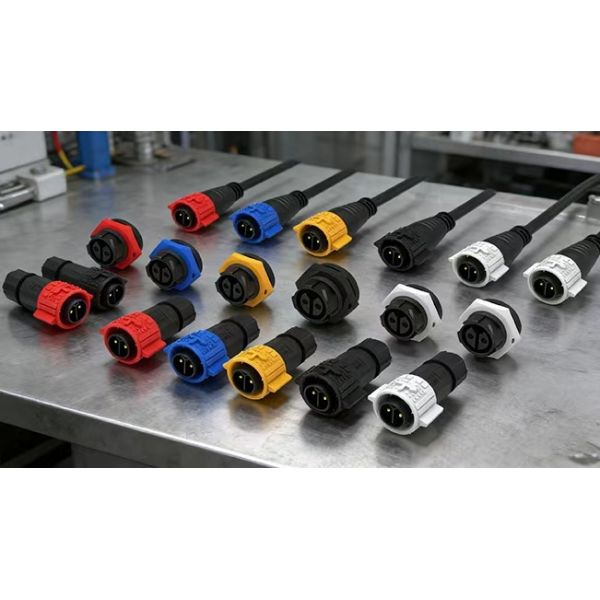

M19 Low Current 5A Outdoor Lighting Connectors Push Locking 14 Pin Waterproof Connector

Gender : Male to Female Quick Lock

Packaging Details : 1.Plastic bag;2.Carton;3.As per customer's requirements

Protection level : IP67 Waterproof

Delivery Time : 3~6working days

Certification : CE/Rohs/TUV/UL

Model Number : M19

Material : Nylon

Place of Origin : China

MOQ : Negotiation

Flame-resistant rating : UL94-V0

Brand Name : Ulinkcon

Current rating : 5A

Payment Terms : T/T,D/P,L/C,D/A,Western Union,MoneyGram

Pin : 14Pin Data Connector

Price : Negotiation

Supply Ability : 100000 pairs Montly

Contact Now

Quick Lock 14 Pin Male Female Connector M19 300V Data Connectors Waterproof


Quick Description


The M19 14Pin 5A low-current waterproof connector is a high-density multi-channel connection solution exclusively designed for outdoor lighting and landscape illumination systems. Optimized for low-current and low-voltage weak power working conditions, it features a rated 5A stable current output and 14-pin integrated layout to realize centralized control of multi-circuit lighting signals. Adopting tool-free Push Lock self-locking design and IP67 outdoor waterproof grade, it is built with UV-resistant weatherproof housing to withstand harsh outdoor climates. It greatly simplifies complex lighting wiring and serves as an ideal standardized connector for large-scale outdoor lighting projects.

  • 5A Low-Current Precision Output for Lighting Weak Power: Professionally optimized for low-voltage LED lighting systems, the connector provides stable 5A low-load current output. It effectively avoids lamp strobing, light decay and overload burnout caused by excessive current, perfectly matching the long-term low-power continuous operation mode of outdoor lighting equipment with safe and balanced power transmission.
  • UV & Weather Resistant Housing for Outdoor Durability: Adopting outdoor-grade modified weatherproof plastic with enhanced anti-UV treatment, the housing resists long-term sun exposure, rain erosion and extreme temperature changes from -40℃ to +105℃. It prevents yellowing, cracking and aging, maintaining stable structural performance for year-round outdoor lighting operation.
  • IP67 Full Waterproof Protection for All-Weather Outdoor Use: Equipped with high-elastic aging-resistant silicone gasket, the connector achieves gapless sealing after mating. It blocks rainwater, snow, dust and condensation infiltration, preventing short circuits and lamp damage in fully exposed outdoor landscape lighting scenarios.
Widely applied to outdoor LED lighting projects, building facade illumination, garden landscape lights, urban lighting control systems, intelligent street lamps, outdoor light strips and fountain lighting systems. Perfect for outdoor low-voltage lighting scenarios requiring multi-channel centralized control, weather resistance and standardized batch engineering wiring.


Main Features


  • Push lock quick release system
  • Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
  • 3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
  • 6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
  • Field assembly version:both wire to wire and wire to board options
  • Current rated 20A for long time working
  • Cable assembly service supported, welcome to custom
  • OEM/ODM welcome


Electrical Parameters
Number of Poles 14Pin
Current Rating 5 Amax.
Voltage Rating 300VAC max
Durability Voltage 1500VAC @ 60 s.


Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min) when mated
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone


Operation Parameters
Voltage Rating 300VAC max
Current Rating 5A max
Min Wire Size OD 3.0mm ~ 6.0mm
Max Wire Size OD 8.0mm ~ 10.0mm
Max.Cable Cross Section Area 0.5mm2 ~ 2.5mm2


Application industries


  • Growth Lights
  • Communications Application
  • product coding machines
  • inventory product coding
  • inkjet systems
  • Solar System
  • industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic&pathology equipment
  • Communications equipment
  • Heavy machinery


Design Sketch


M19 Low Current 5A Outdoor Lighting Connectors Push Locking 14 Pin Waterproof Connector

M19 Low Current 5A Outdoor Lighting Connectors Push Locking 14 Pin Waterproof Connector


FAQ


1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

2. Q: How do I place an order? What is the process?

A: The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.


M19 Low Current 5A Outdoor Lighting Connectors Push Locking 14 Pin Waterproof Connector
